Product Range

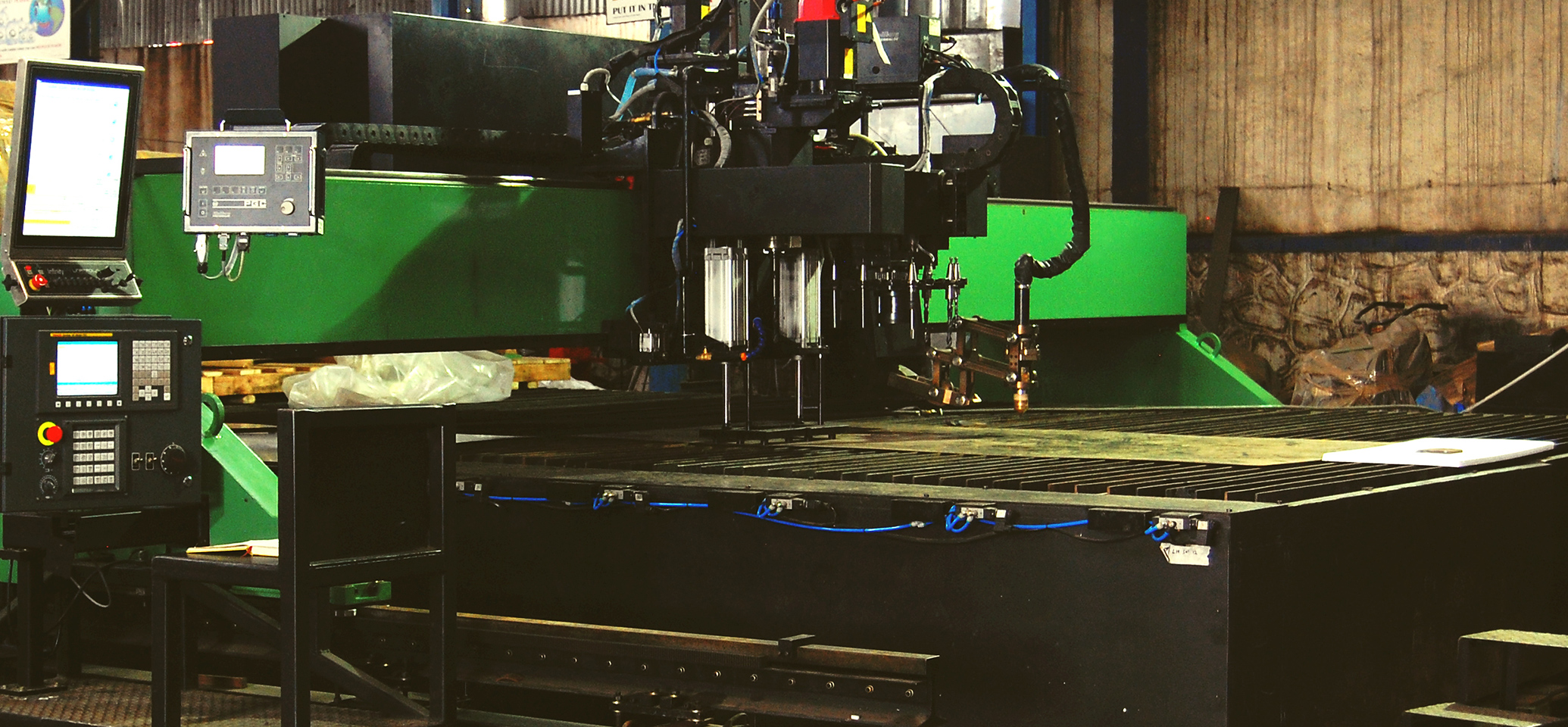

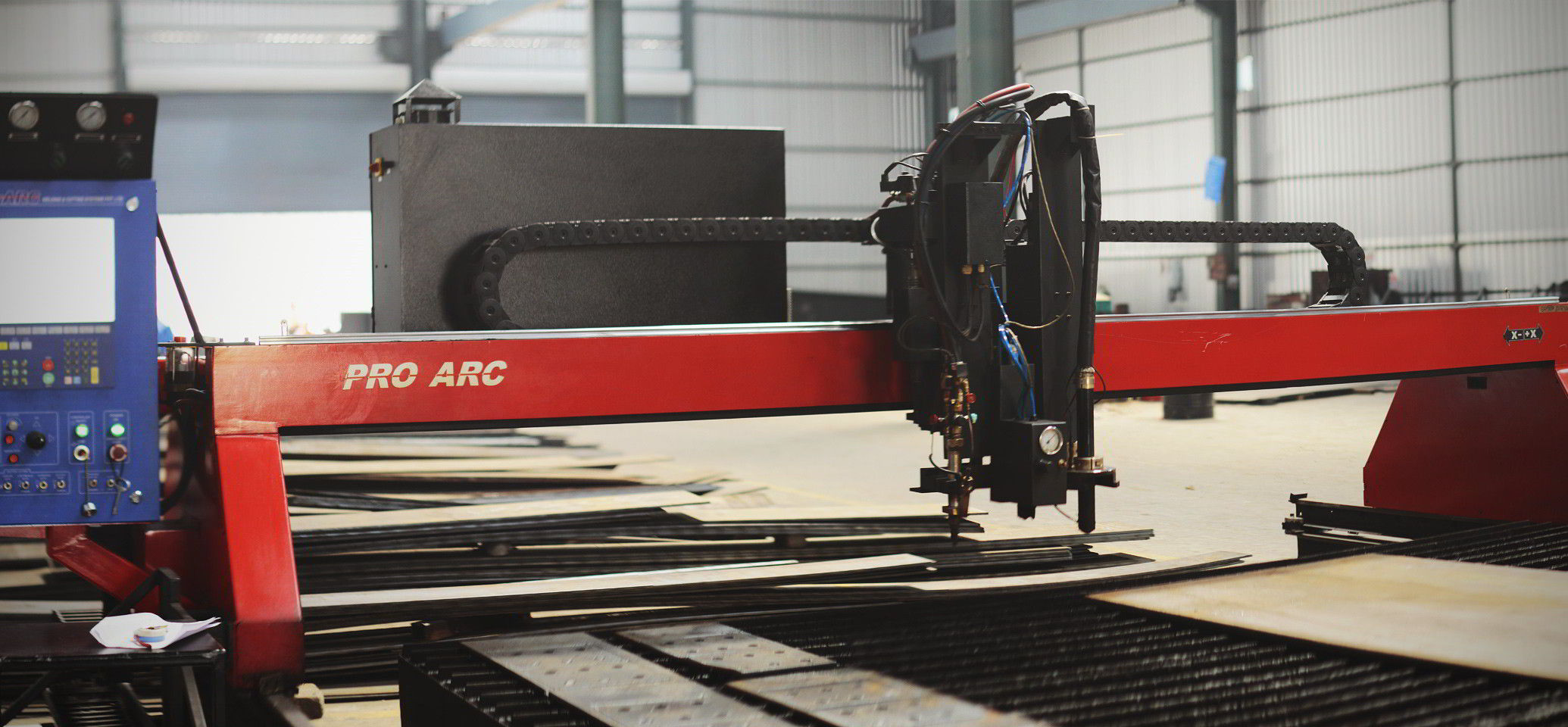

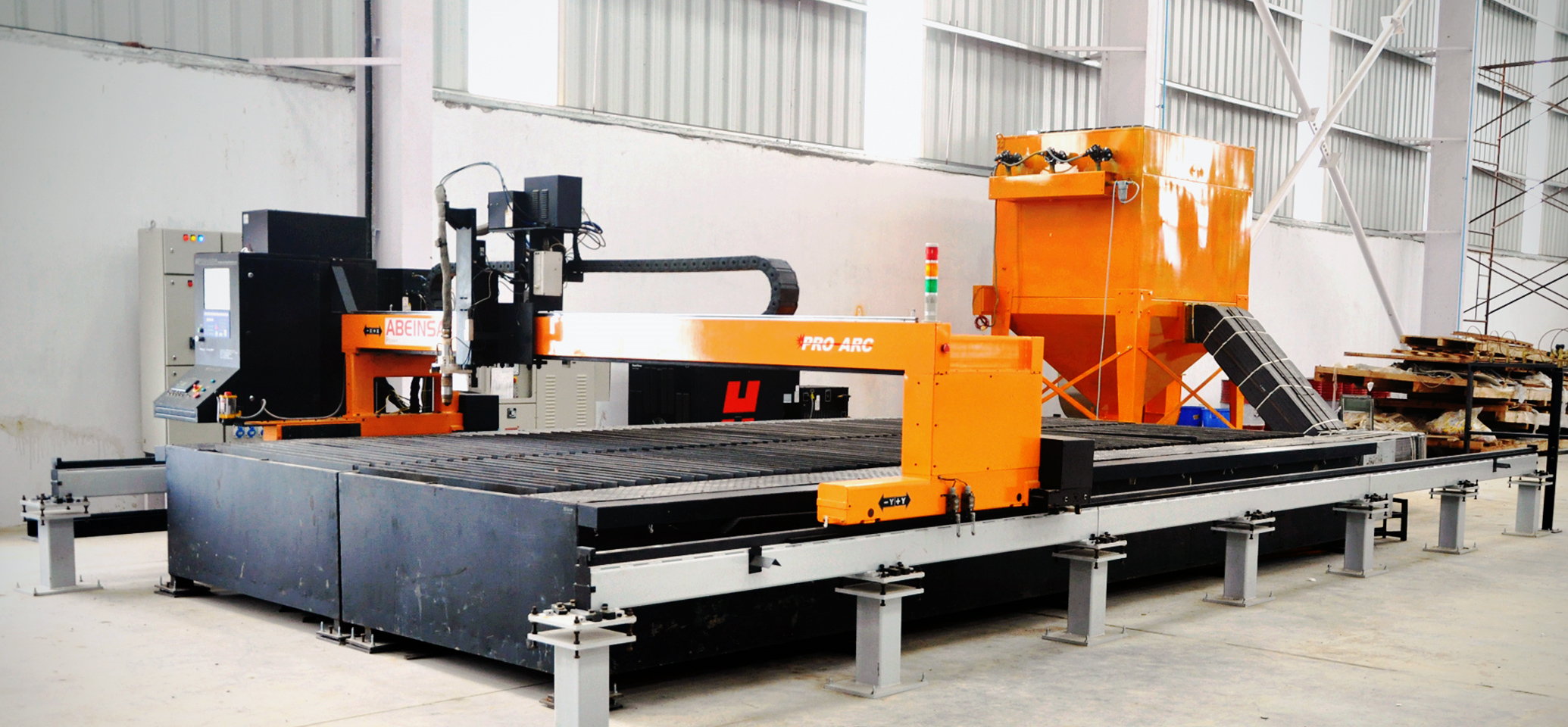

Inferno - Apex Series

High-precision engineering for ultimate performance.

Processes

Plate cutting

Edge Preparation

Strip Cutting

Marking

Watch Product Video

Variants

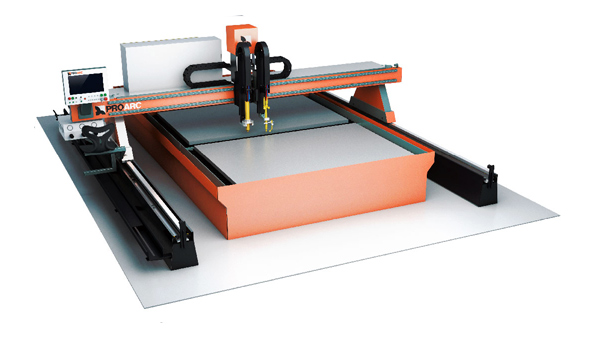

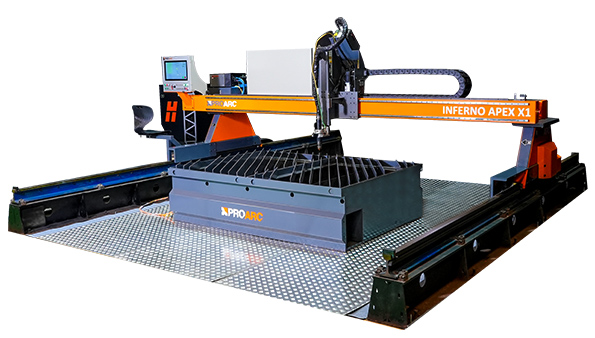

Apex X1 - High-speed machine designed for high-definition plasma cutting

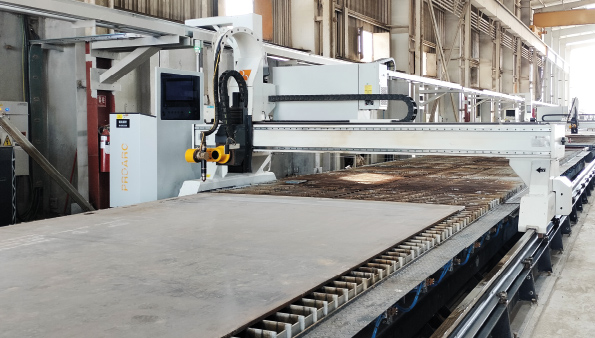

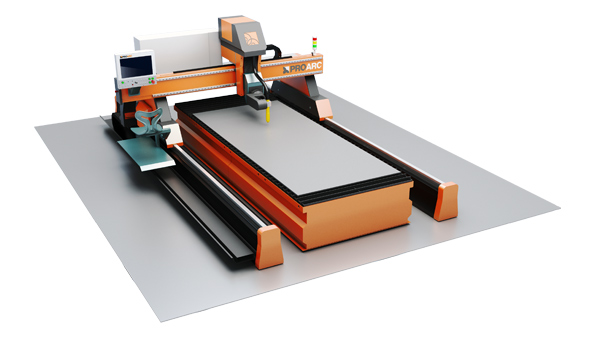

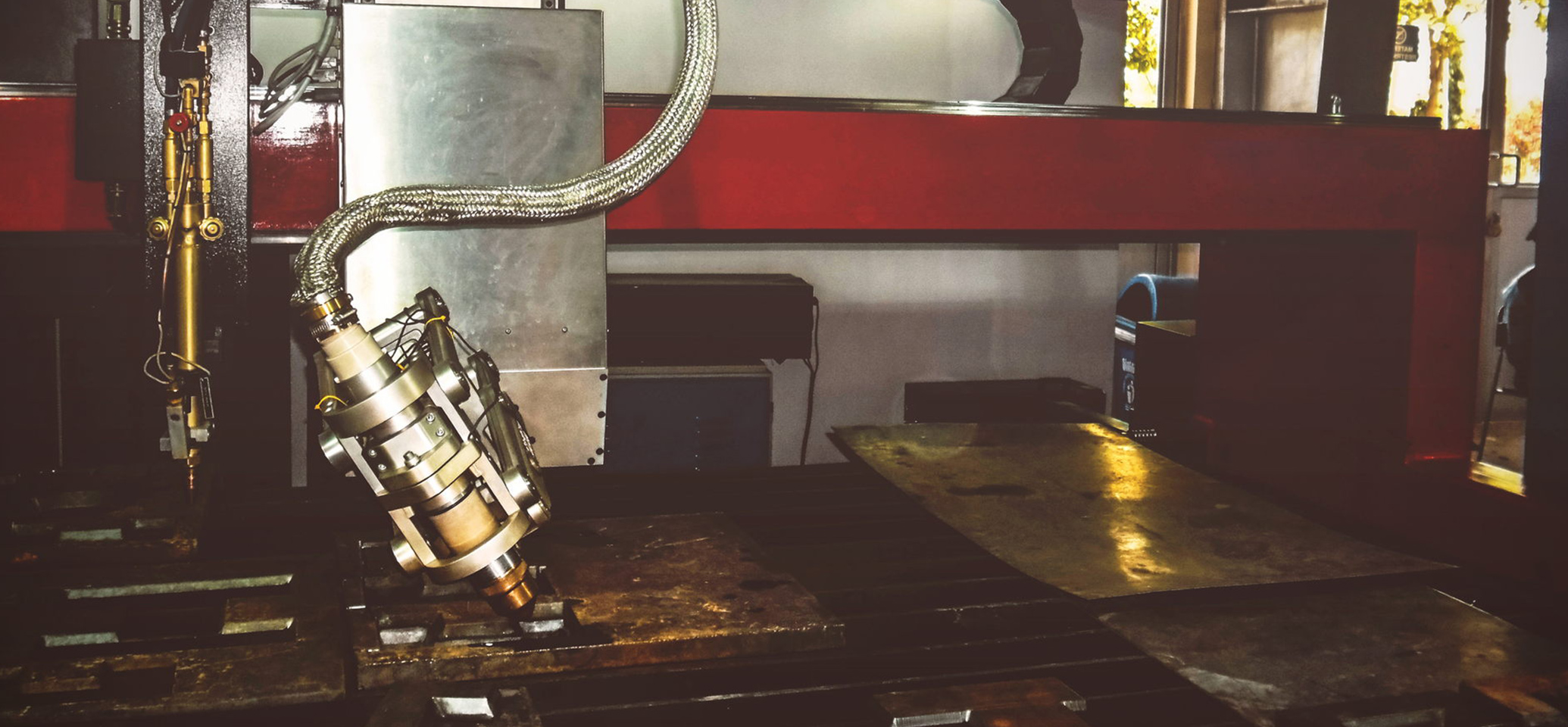

Apex X2 - Heavy-duty machine designed for large bed sizes and plate beveling applications

Large gantry design supported on heavy duty machined railway rails
Built with sturdy components to ensure high reliability
Dual linear motion guides mounted on the gantry for precise motion of torch stations
Helical racks and pinions ensure smoother operation, reduced shock loads, less noise and vibration
Power transmission along X & Y axes through digital AC servomotors and low backlash planetary gearboxes
Dual synchronized servo motors for gantry motion along longitudinal direction
Ball screw slides for precise vertical motion of torches
Touch screen based human machine interface (HMI)
Operator seat/ cabin that moves with the gantry in order to minimize operator fatigue
Remote fault diagnostics
Industry 4.0 compliant machine
Auto plate alignment for reduced setup time
Collision protection for plasma heads
Enhanced safety features
Air-conditioned control panel to protect the drives and other electronics from the harsh workshop conditions
Extended features include pipe/ tube cutting, marking, bevel heads for weld edge preparation, bolt hole cutting, automatic gas console, underwater cutting.

Model	Apex X1	Apex X2
Processes	Oxy-fuel and/or Plasma
Application	Heavy-duty cutting application, high precision
Machine Structure	Gantry simply supported at both ends by machined railway rails
Working Widths	1,500 mm - 5,000 mm	1,500 mm - 8,000 mm
Track Width	3,000 mm - 6,000 mm	3,000 mm - 9,000 mm
Maximum Working length	30,000 mm	40,000 mm
Lifter Stroke	200 mm / 300 mm
Cutting Capacity:
Oxy-fuel	6 mm - 100 mm / 200 mm (Higher cutting thicknesses on demand)
Plasma	0.5 mm – 150 mm MS 1 mm – 150 mm SS 1 mm – 150 mm Al Cutting thickness depends on the plasma system offered
Maximum plasma torches	2	2
Maximum oxy-fuel torches	9	12
Maximum Position Speed	24,000 mm/min
X & Y axes motion	Helical Rack and pinion
Z axis motion	Ball screw
Guiding mechanism	Dual linear motion guides on cross axis, cam follower arrangement for long axis with heavy duty railway rails
Cutting accuracy and dimensional tolerance	ISO 9013 class 2
Operator HMI	Touch screen based HMI, switches on operator panel
Operator Seat	Yes
Add-on features	Triple torch oxyfuel bevel, fume extraction table, underwater cutting table, bolt hole cutting, auto gas console, powder marking, inkjet marking, dot punch marking, spray ink marking.	Plasma auto bevel, triple torch oxyfuel bevel, fume extraction table, underwater cutting table, bolt hole cutting, auto gas console, powder marking, inkjet marking, dot punch marking, spray ink marking.

* The specifications are subject to change on the basis of improvements made in our products.
Certain customizations are possible in the above machines.

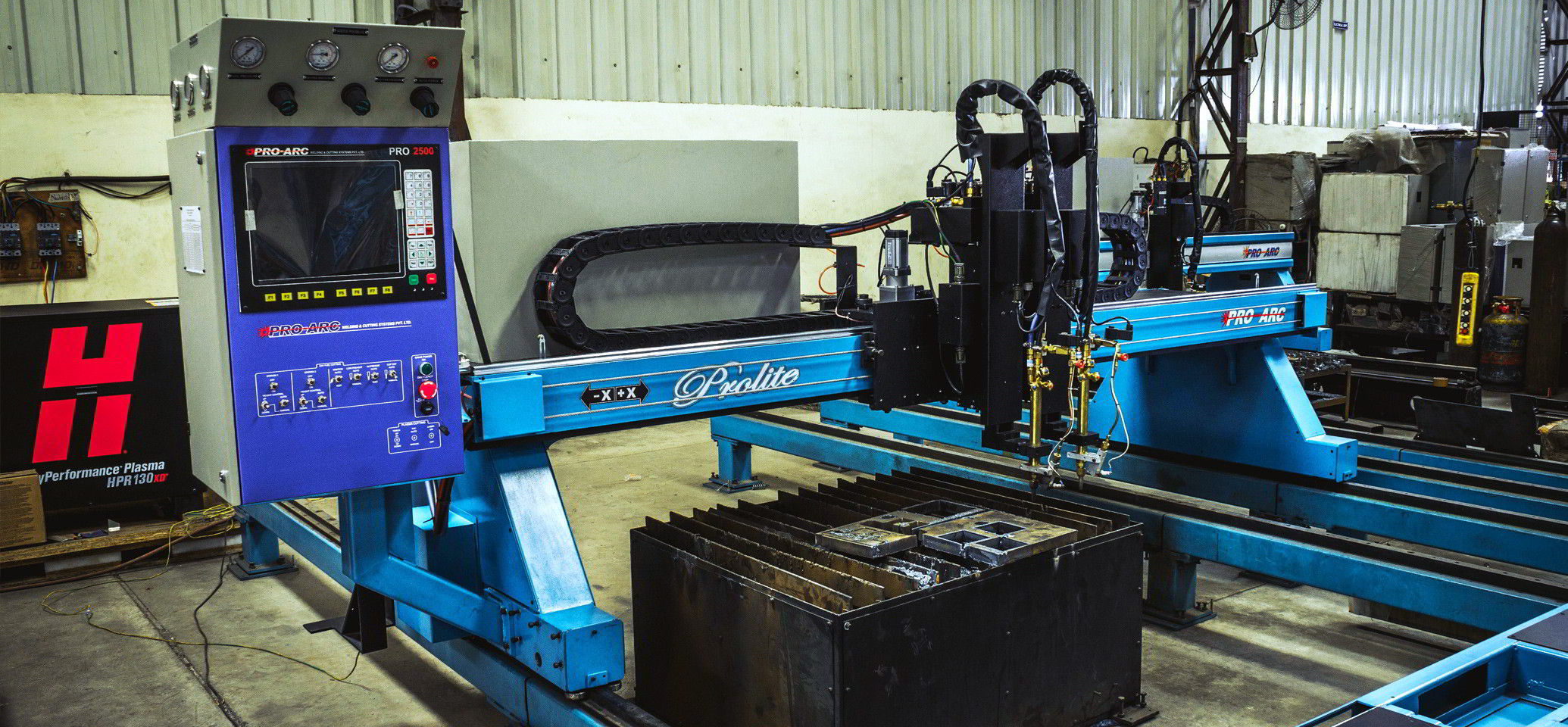

Inferno - Edge Series

Behold India’s most trusted CNC cutting machines

Processes

Plate cutting

Marking

Strip Cutting

Pipe Cutting

Watch Product Video

Variants

Edge E1 - Robust machines suitable for oxyfuel cutting and entry and medium level air plasma cutting machines, ARM-based controller

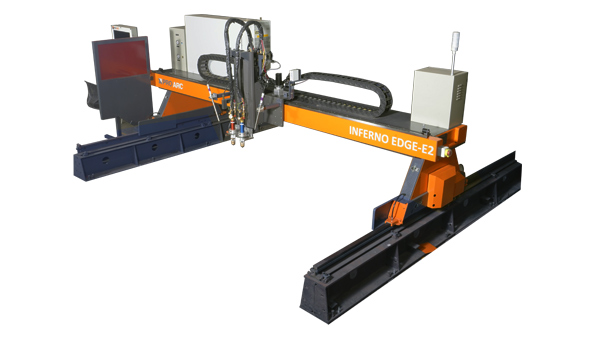

Edge E2 - Robust machines suitable for oxyfuel cutting and medium-level and high-definition plasma cutting machines, Windows based controller

Edge E1S & E2S - Edge E1/E2 machines with profile cutting capability in the front side of the gantry and multi-torch strip cutting capability in the rear side of the gantry

Edge E1P & E2P - Edge E1/E2 machines with plate and pipe cutting arrangement

Moderate gantry design supported on machined railway rails
Built with sturdy components to ensure high reliability
Linear motion guide mounted on the gantry for precise motion of torch stations
Spur / helical racks and pinions for precise motion
Power transmission along X & Y axes through digital AC servomotors and low backlash planetary gearboxes
Dual synchronized servo motors for gantry motion along longitudinal direction
Ball screw slides for precise vertical motion of torches
Operator seat that moves with the gantry in order to minimize operator fatigue
Auto plate alignment for reduced setup time
Collision protection for plasma heads
Enhanced safety features
Extended features include pipe/ tube cutting, marking, triple torch oxyfuel straight bevel head for weld edge preparation, underwater cutting.

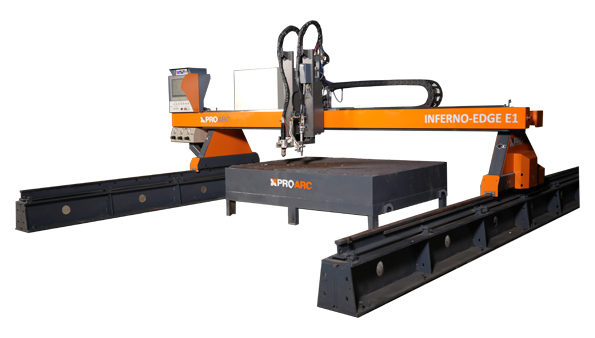

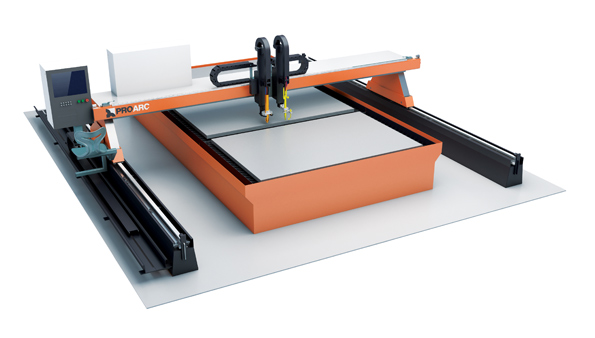

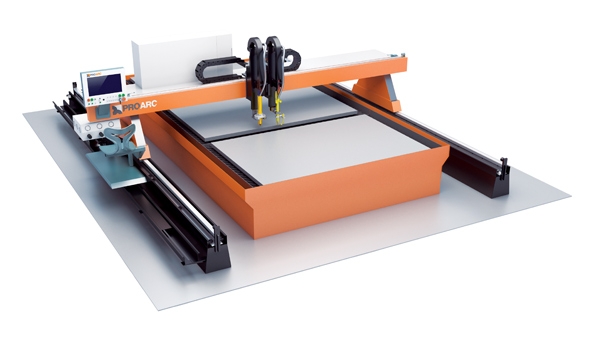

Edge E1 & E2
Model	Edge E1	Edge E2
Processes	Oxy-fuel and/or Plasma
Application	Medium to Heavy-duty cutting application, flexibility to add multiple processes
Machine Structure	Gantry simply supported at both ends by machined railway rails
Working Widths	1,500 mm - 4,000 mm	1,500 mm - 4,000 mm
Track Width	2,500 mm - 5,000 mm	2,500 mm - 5,000 mm
Maximum Working length	30,000 mm	40,000 mm
Lifter Stroke	100 mm / 200 mm / 300 mm
Cutting Capacity:
Oxy-fuel	6 mm - 100 mm / 200 mm (Higher cutting thicknesses on demand)
Plasma	0.5 mm – 100 mm MS 1 mm – 100 mm SS 1 mm – 100 mm Al Cutting thickness depends on the plasma system offered
Maximum plasma torches	2	2
Maximum oxy-fuel torches	6	6
Maximum Position Speed	12,000 mm/min	24,000 mm/min
X & Y axes motion	Spur Rack and pinion	Spur/ Helical Rack and pinion
Z axis motion	Ball screw
Guiding mechanism	Single linear motion guide with cam follower on cross axis & cam follower arrangement for long axis with medium duty railway rail
Cutting accuracy and dimensional tolerance	ISO 9013 class 2
Operator HMI	Keypad based HMI, switches on operator panel	Touch screen based HMI, switches on operator panel
Operator Seat	Yes
Add-on features	Plasma Manual bevel, fume extraction table, powder marking, dot punch marking.	Plasma Manual bevel, fume extraction table, powder marking, dot punch marking, underwater cutting table, bolt hole cutting, auto gas console

Edge E1S & E2S
Model	Edge E1S	Edge E2S
Maximum strip cutting torches	9	12
Auto spacing	No	Optional
Torch vertical motion	Manual/ motorized	Manual/ motorized
Auto gas console	No	Optional
Auto ignition	Optional	Optional
Automatic torch height controller	Optional	Optional

Edge E1P & E2P
Model	Edge E1P	Edge E2P
Structures allowed	Pipe	Pipe / Pipe & tube
Maximum pipe / tube dimensions	Pipe Diameter ⌀ 50 mm - 300 mm Pipe length 6000 mm	Pipe Diameter ⌀ 50 mm - 300 mm Tube size max. 200 mm x 200 mm Length 6,000 mm
Chuck clamping	Manual / Pneumatic / Hydraulic	Manual / Pneumatic / Hydraulic

* The specifications are subject to change on the basis of improvements made in our products.
Certain customizations are possible in the above machines.

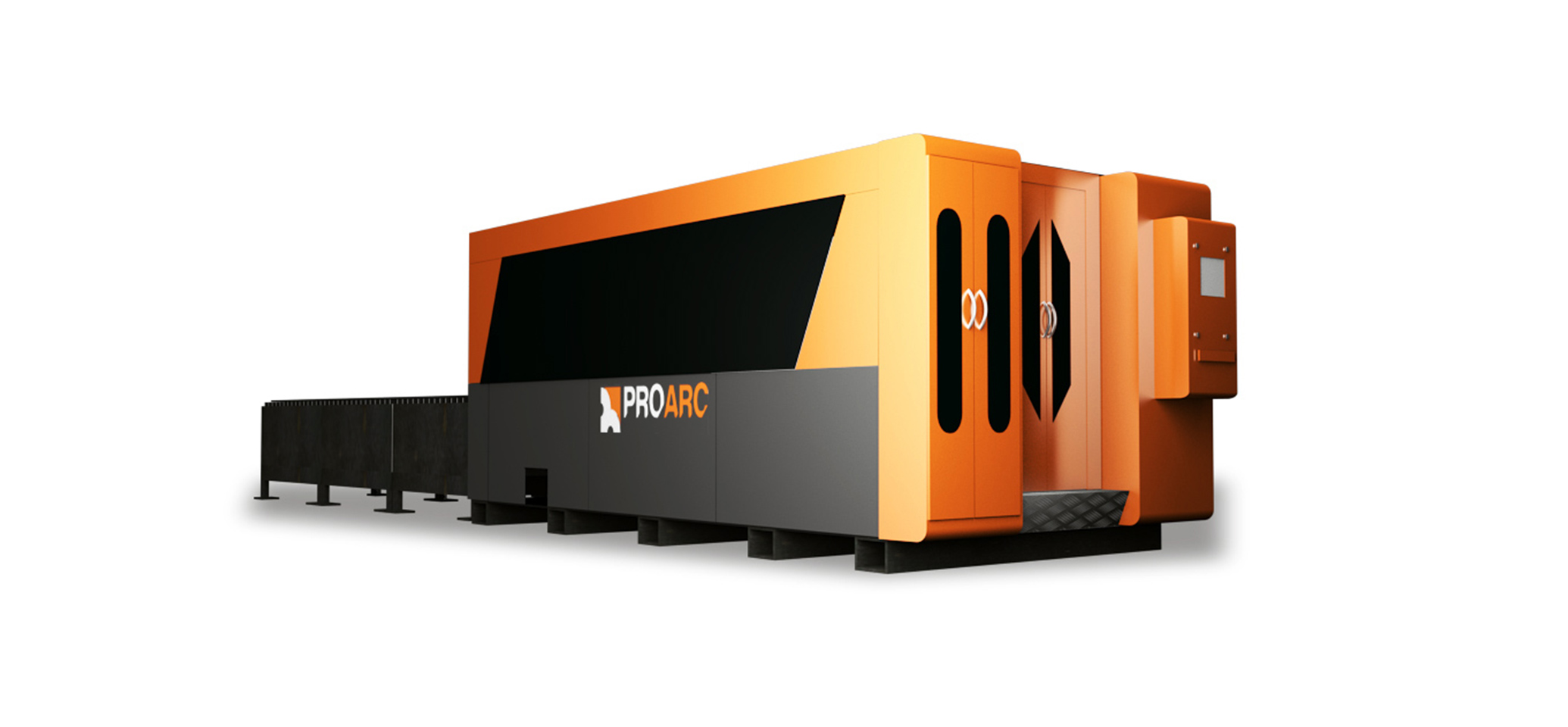

Lumos - Fury Series

Ultimate precision for higher thicknesses and speeds

Processes

Plate Cutting

Marking

Pipe Cutting

Watch Product Video

Variants

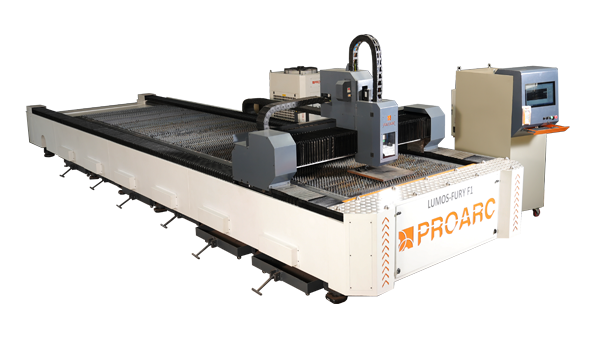

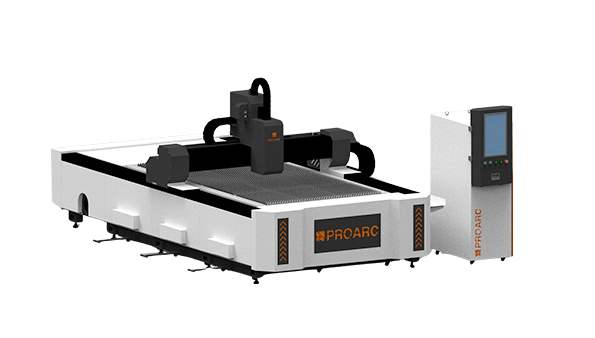

Fury F1 - Single bed design, open machine body

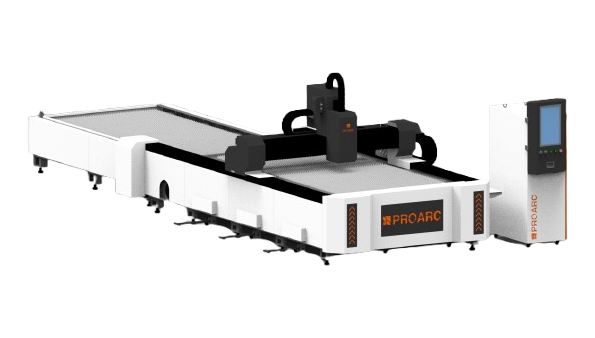

Fury F2 - Shuttle table, open machine body

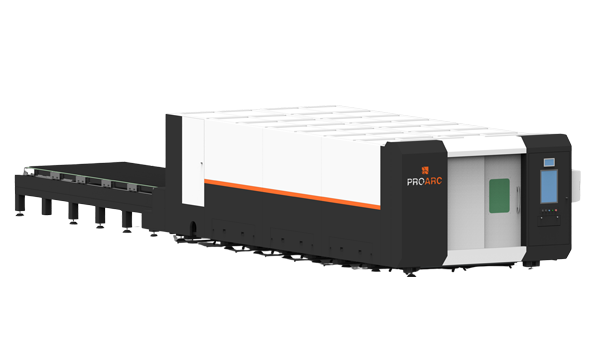

Fury F3 - Shuttle table, enclosed machine body

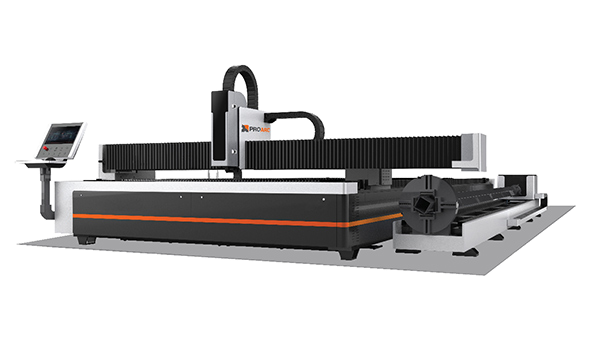

Fury F1P - Single bed design, open machine body, add-on tube cutting arrangement

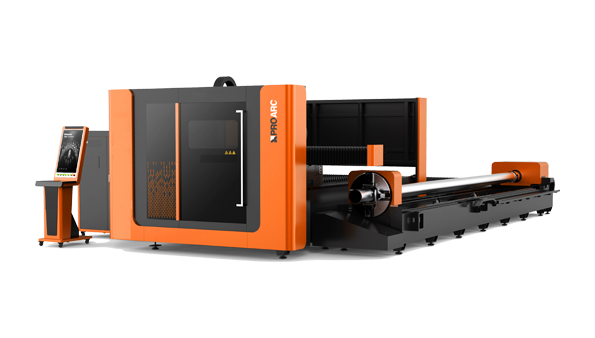

Fury F3P - Shuttle table, enclosed machine body with add-on tube cutting arrangement

Rigid, reliable machine with efficient cooling, lubrication & dust-removal system for ultimate accuracy
Best in class accuracy and productivity
User friendly graphical user interface
Drawing and nesting of shapes on the CNC controller itself
Inbuilt fume extraction system
Aerodynamic aluminium gantry for quick acceleration and deceleration
Auto sheet alignment
Compatibility with laser automation line

Fury F1, F2, F3 & F1P
Model	Fury 3015	Fury 4020	Fury 6015	Fury 6520	Fury 6525	Fury 8025
Working width	1,525 mm	2,025 mm	1,525 mm	2,025 mm	2,525 mm	2,525 mm
Working length	3,050 mm	4,050 mm	6,050 mm	6,550 mm	6,550 mm	8,050 mm
Positioning accuracy	± 0.03 mm/m
Repeatability	± 0.02 mm/m
Rapid speed	100 - 120 m/min
Acceleration	1G
Shuttle table exchange time	10s	12s	15s	18s	20s	22s

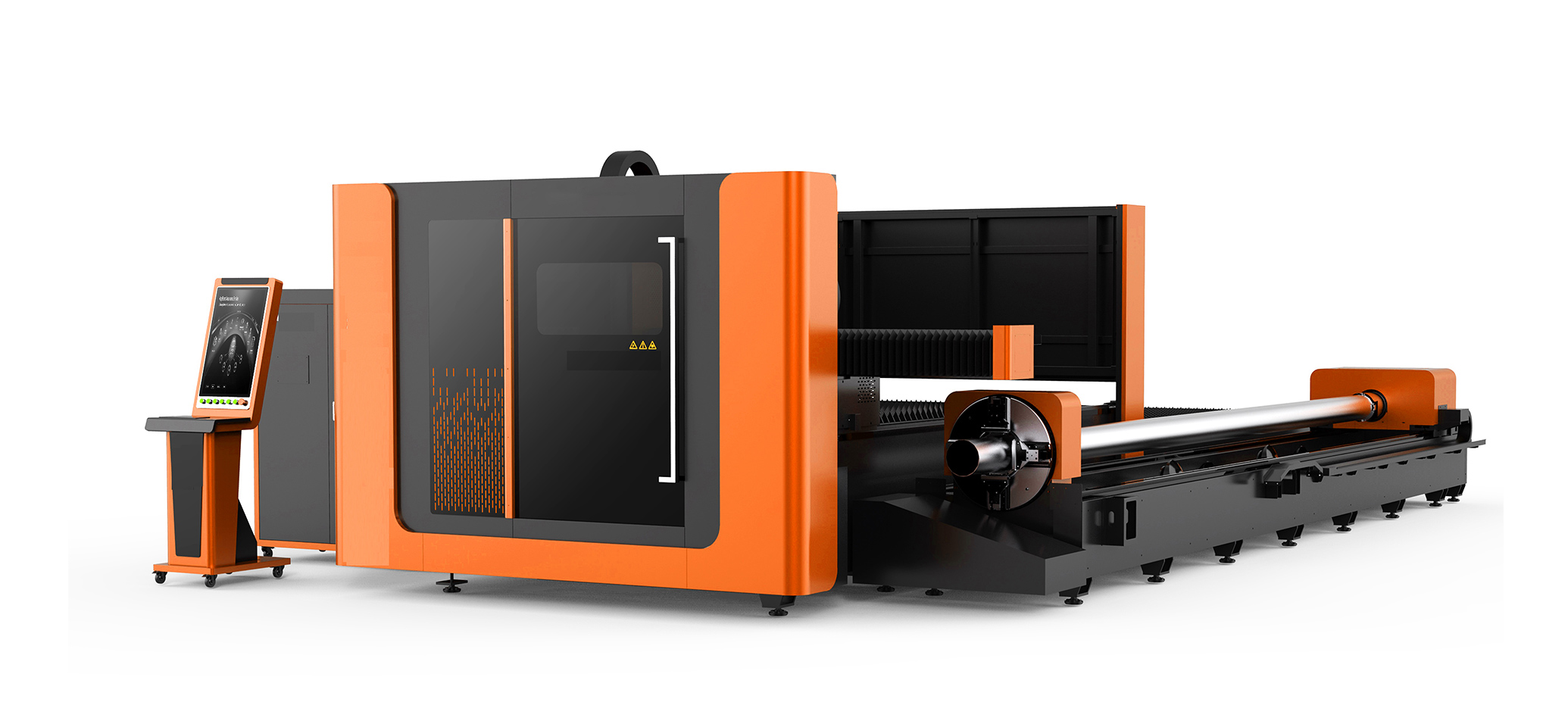

Fury F3P
Model	Fury F5 3015	Fury F5 6015	Fury F5 6520
Working width	1,525 mm	1,525 mm	2,025 mm
Working length	3,050 mm	6,050 mm	6,550 mm
Positioning accuracy	± 0.03 mm/m
Repeatability	± 0.02 mm/m
Rapid speed	100 - 120 m/min
Acceleration	1G
Pipe Diameter	⌀ 20 - 160 mm	⌀ 20 - 160 mm	⌀ 20 - 220 mm
Shuttle table exchange time	10s	15s	18s

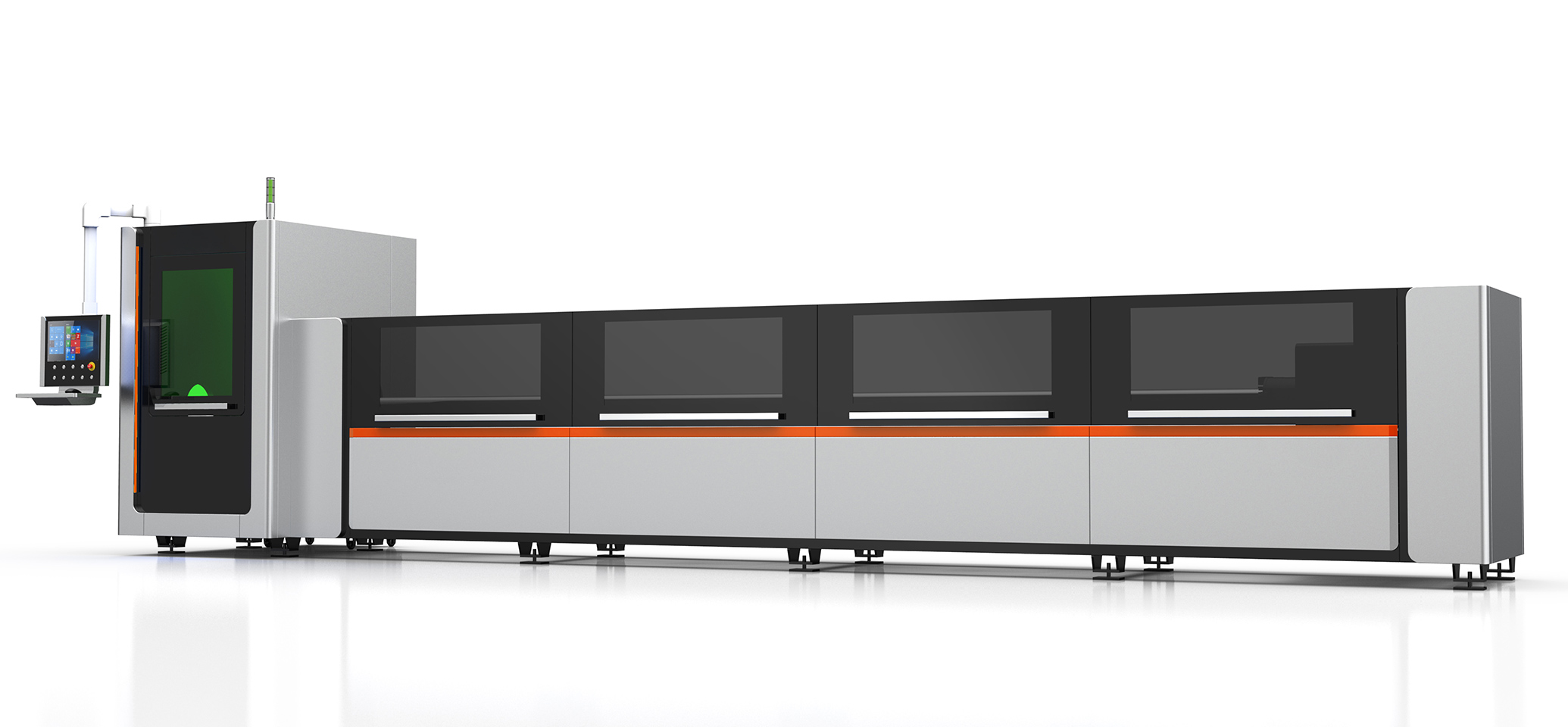

Fury F6
Model	Fury F6 T3000	Fury F6 T6000	Fury F6 T9000	Fury F6 T12000
Pipe diameters	⌀ 20 - 160 mm ⌀ 20 - 220 mm ⌀ 25 - 280 mm ⌀ 25 - 320 mm
Laser power	1 - 6 KW
Positioning accuracy	± 0.03 mm/m
Repeatability	± 0.02 mm/m
Rapid speed	100 - 120 m/min
Acceleration	1G

* The specifications are subject to change on the basis of improvements made in our products.
Certain customizations are possible in the above machines.

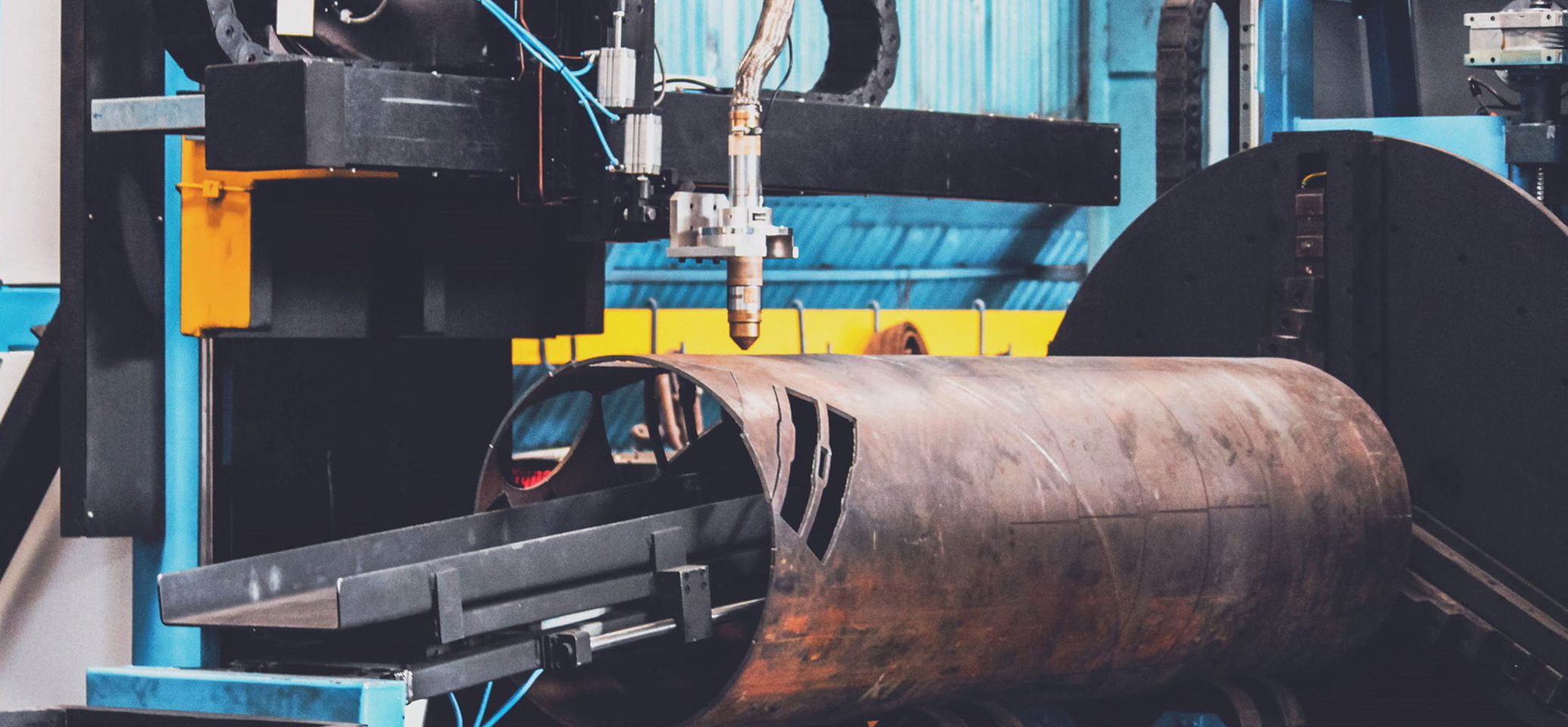

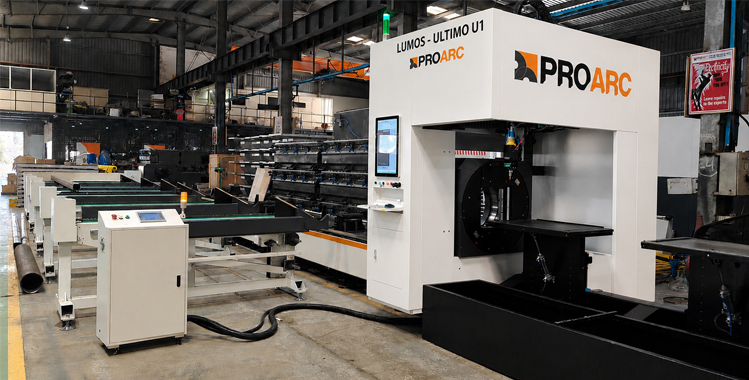

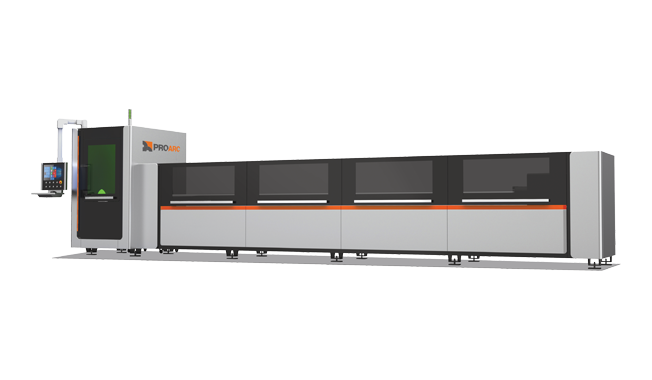

Lumos - Ultimo

Maximum capacity, for all pipe and tube cutting demands.

Processes

Pipe beveling

Pipe Cutting

Marking

Auto Loading

Watch Product Video

Capability to cut distinctive shapes and intricate profiles
Robust chuck system with high-precision rotary axis
Supports different pipe lengths & diameters

Fury Ultimo U1
Model	Fury Ultimo U1 T3000	Fury Ultimo U1 T6000	Fury Ultimo U1 T9000	Fury Ultimo U1 T12000
Pipe diameters	⌀ 20 - 160 mm ⌀ 20 - 220 mm ⌀ 25 - 280 mm ⌀ 25 - 320 mm
Laser power	1 - 6 KW
Positioning accuracy	± 0.03 mm/m
Repeatability	± 0.02 mm/m
Rapid speed	100 - 120 m/min
Acceleration	1G

* The specifications are subject to change on the basis of improvements made in our products.
Certain customizations are possible in the above machines.

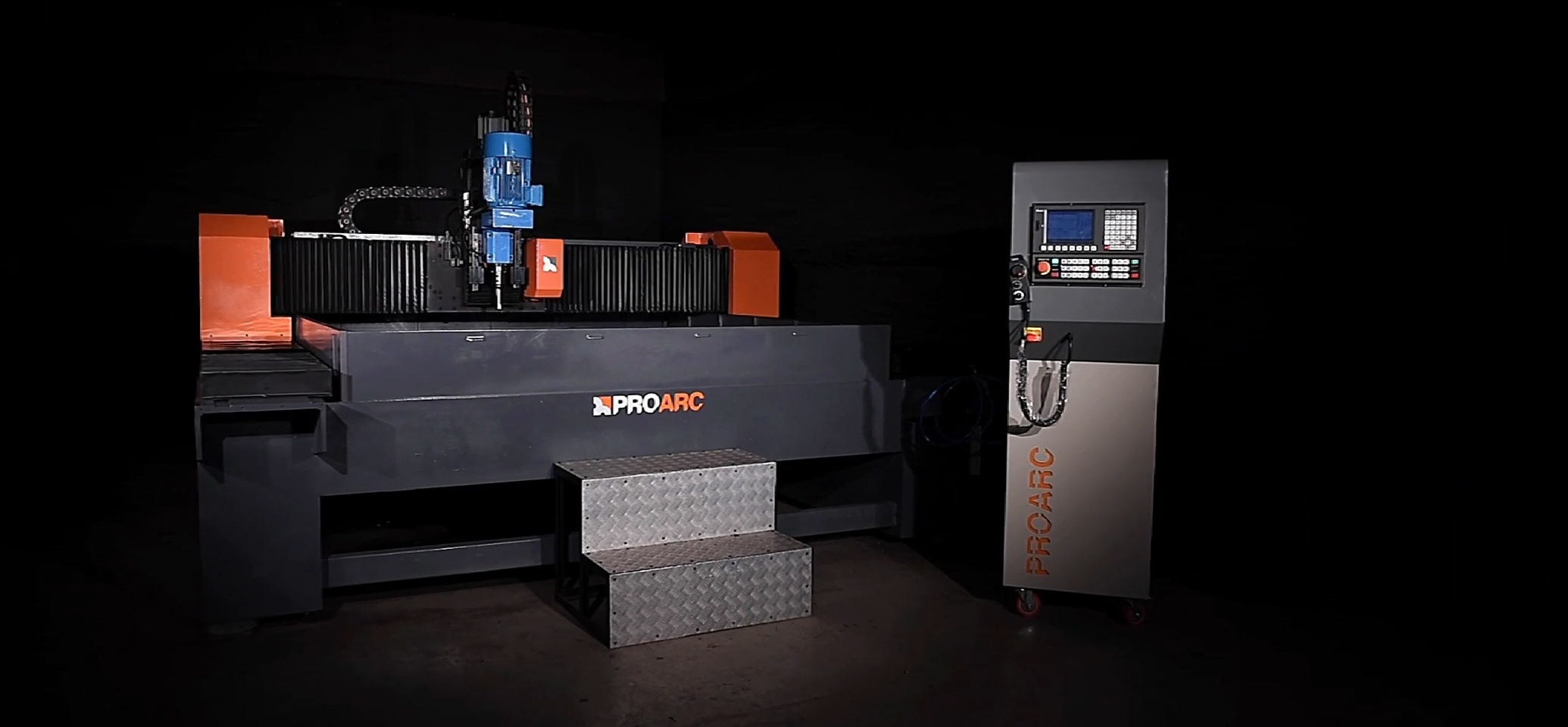

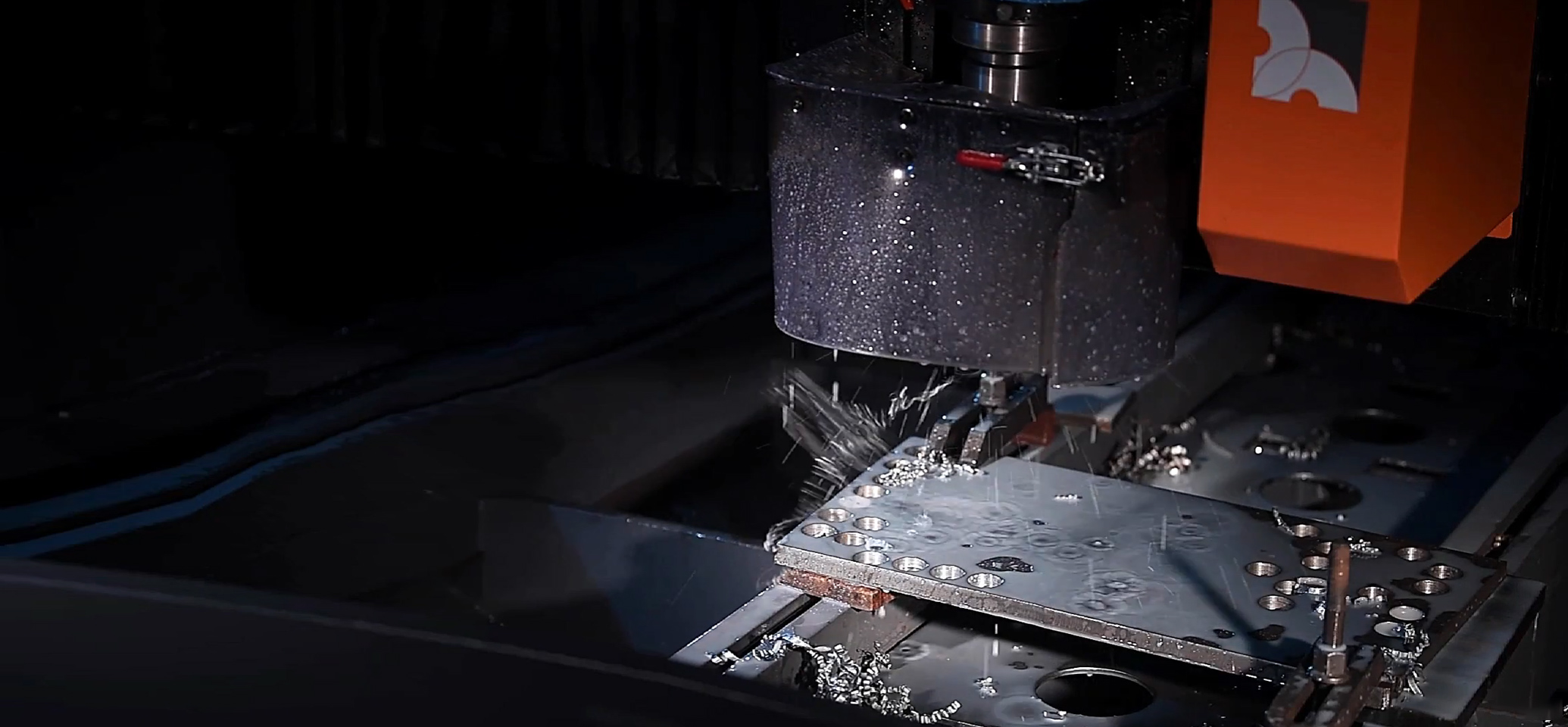

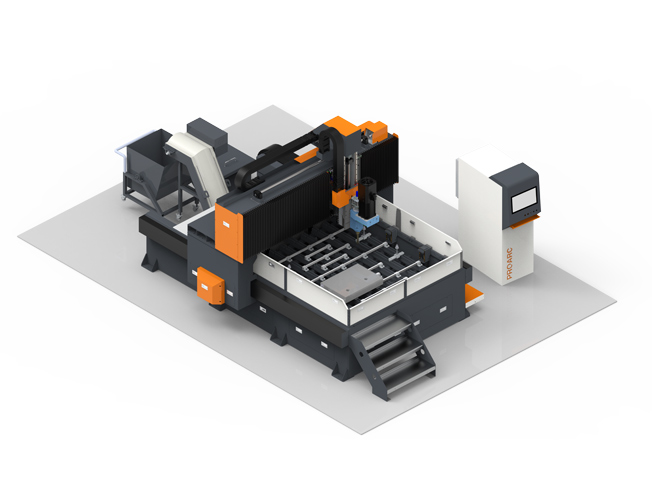

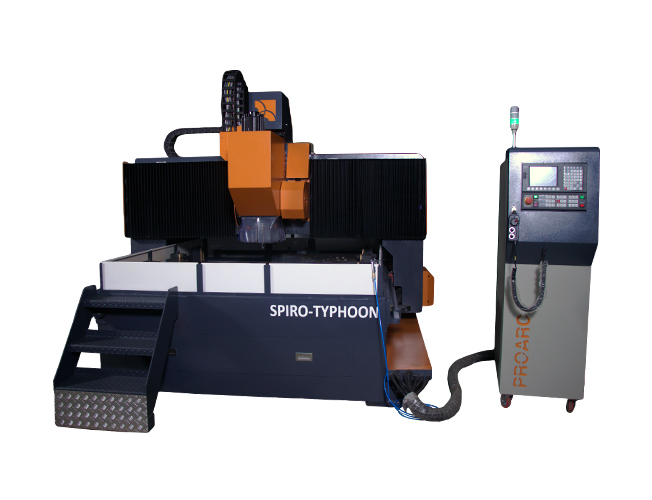

Spiro - Typhoon

Revolutionary drilling technology that offers flexibility

Processes

Drilling

Tapping

Milling

Watch Product Video

Heavy-duty and robust machine bed with rigid gantry to counter the back force generated during drilling/ tapping/ milling
Linear motion guides for longitudinal and transverse axis motion
High power/ torque motors for axis motion
Chip collection and coolant recirculation system
T-slot table for job clamping
Helical racks & pinions/ ball screws for axis motion

Model	Typhoon
Processes	Drilling / Tapping / Milling
Application	Precise drilling applications with high accuracy requirements and high productivity requirements
Machine Structure	Heavy-duty table top machine design with T-slot tables and gantry motion through linear motion guides
Working widths	1,500 mm / 2,000 mm / 2,500 mm / 3,000 mm
Working lengths	2,000 mm / 4,000 mm / 6,000 mm
Spindle stroke	200 mm / 250 mm / 300 mm
Drilling maximum thickness	100 mm (Depends on drilling tool and max. L/D permissible)
Drilling hole diameters	Maximum ⌀ 30mm / ⌀ 40mm / ⌀ 50mm
No. of spindles	1-2
Spindle taper	ISO40 / ISO50 / HSK63
Cooling system	Mist cooling / flood cooling / through coolant
Positioning accuracy	± 0.05 mm/m
Maximum Positioning Speed	12,000 mm/min
X & Y axes motion	Helical Rack and pinion / Ball screw
Z axis motion	Ball screw
Guiding mechanism	Linear motion guides on cross and long axes
Add-On feature	Automatic tool changer, chip conveyor, coolant recirculation system, tapping, milling

* The specifications are subject to change on the basis of improvements made in our products.
Certain customizations are possible in the above machines.

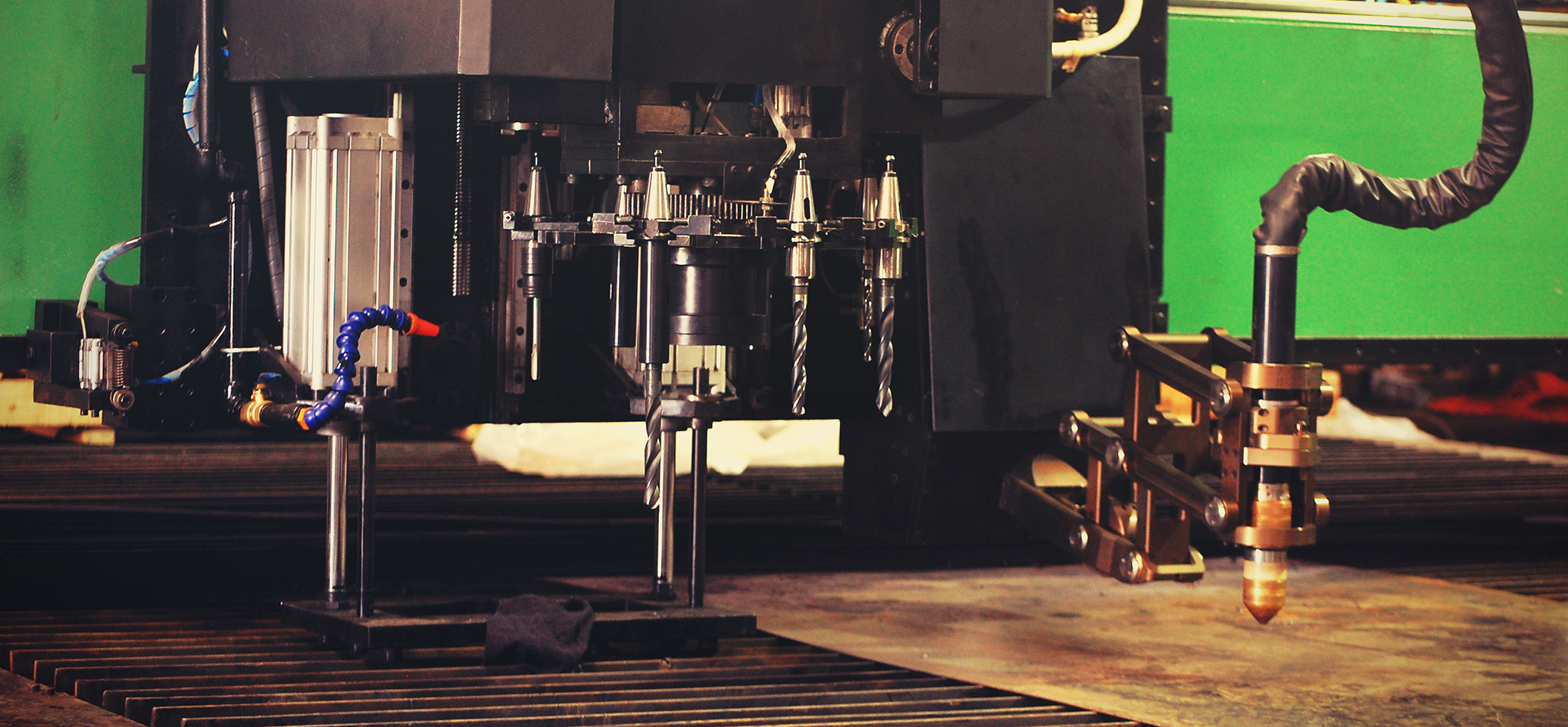

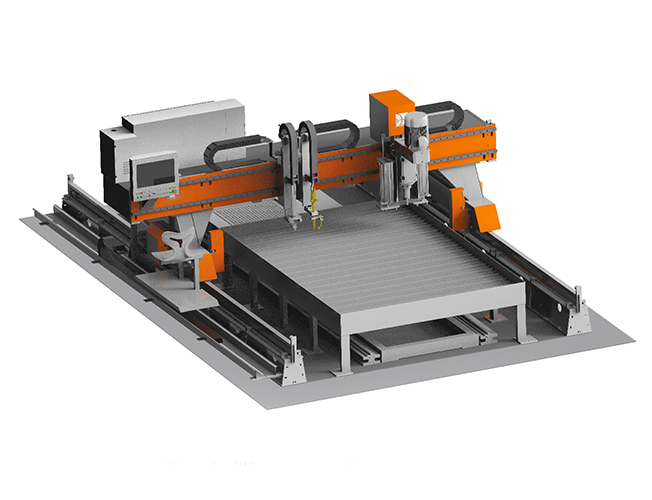

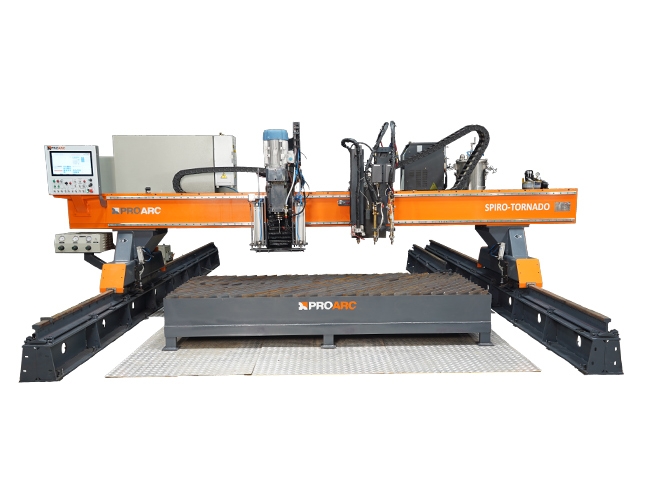

Spiro - Tornado

Revolutionary drilling technology that offers flexibility.

Processes

Plate cutting

Edge Preparation

Marking

Drilling

Watch Product Video

Robust structure to counter the back force generated during drilling and milling operations
Localized clamping of plates at the point of drilling
Easy generation of programs for cutting and drilling operations
Machine designed for large working areas

Model	Tornado
Processes	Drilling and Oxy-Fuel and/or Plasma
Application	Plate processing operations including drilling/ tapping and cutting usually for structural fabrication
Machine Structure	Gantry simply supported at both ends by machined railway rails
Working widths	1,500 mm - 4,000 mm
Track width	3,000 mm - 5,500 mm
Maximum Working length	30,000 mm
Lifter Stroke	300 mm
Cutting Capacity:
Oxy-fuel	6 mm - 100 mm
Plasma	0.5 mm – 100 mm MS 1 mm – 100 mm SS 1 mm – 100 mm Al Cutting thickness depends on the plasma system offered
Maximum plasma torches	1
Maximum oxy-fuel torches	3
Maximum drilling spindles	1
Drilling hole diameters	Maximum ⌀ 30mm / ⌀ 40mm / ⌀ 50mm
Drilling maximum thickness	100 mm (Depends on drilling tool and max. L/D permissible)
Spindle taper	ISO40 / ISO50 / HSK63
Cooling system	Mist cooling / flood cooling
Maximum Positioning Speed	12,000 mm/min
X & Y axes motion	Helical Rack and pinion
Z axis motion	Ball screw
Guiding mechanism	Dual linear motion guides on cross axis, cam follower arrangement for long axis with heavy duty railway rails
Cutting accuracy and dimensional tolerance	ISO 9013 class 2
Add-On feature	Fume extraction table, marking, automatic tool changer, chip conveyor, coolant recirculation system, tapping

* The specifications are subject to change on the basis of improvements made in our products.
Certain customizations are possible in the above machines.
