Products

Lumos Series

Lumos series covers the complete range of CNC laser cutting machines from our stable of products. We offer solutions for cutting plates, pipes, tubes and other structural sections and diverse materials such as carbon steel, stainless steel, aluminium, brass, copper and other metals through these machines. The machines range from entry-level CNC laser cutting machines to sophisticated machines for 3D cutting and robotic applications.

Lumos - Fury

View More

Lumos - Blaze

View More

Lumos - Fiero

View More

Lumos - Nova

View More

Product Videos

Lumos Fury F1

Lumos Fury F3

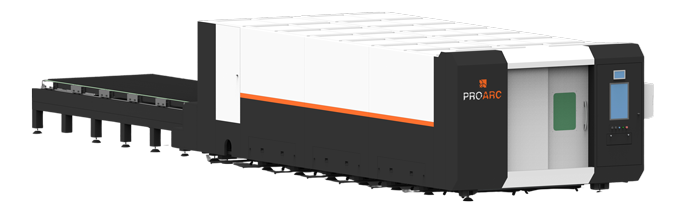

Lumos - Fury Series

Ultimate precision for higher thicknesses and speeds

Processes
Plate Cutting
Marking
Pipe Cutting

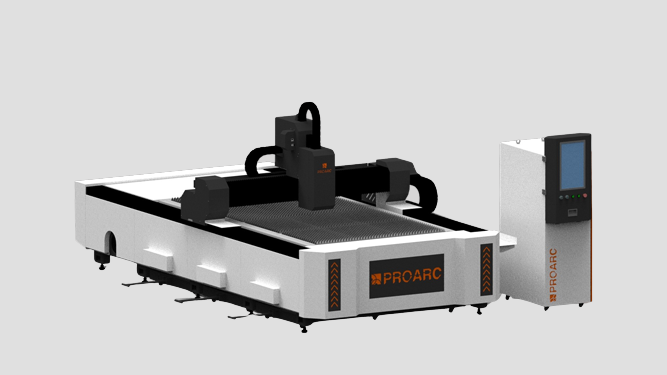

Lumos - Fury F1

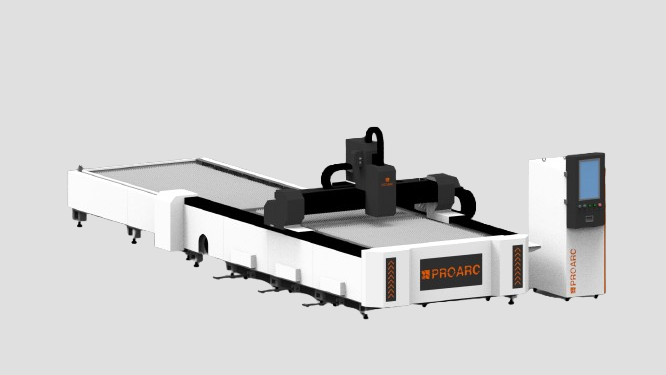

Lumos - Fury F2

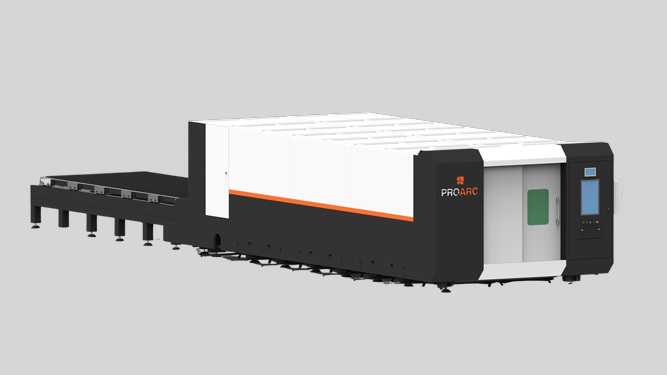

Lumos - Fury F3

Variants

Fury F1 - Single bed design, open machine body

Fury F2 - Shuttle table, open machine body

Fury F3 - Shuttle table, enclosed machine body

Fury F4 - Single bed design, open machine body, add-on tube cutting arrangement

Fury F5 - Shuttle table, open machine body, add-on tube cutting arrangement

Fury F6 - Dedicated machine for tube cutting application

  • Rigid, reliable machine with efficient cooling, lubrication & dust-removal system for ultimate accuracy
  • Best in class accuracy and productivity
  • User friendly graphical user interface
  • Drawing and nesting of shapes on the CNC controller itself
  • Inbuilt fume extraction system
  • Aerodynamic aluminium gantry for quick acceleration and deceleration
  • Auto sheet alignment
  • Compatibility with laser automation line

Fury F1, F2, F3 & F4
Model Fury 3015 Fury 4020 Fury 6015 Fury 6520 Fury 6525 Fury 8025
Working width 1,525 mm 2,025 mm 1,525 mm 2,025 mm 2,525 mm 2,525 mm
Working length 3,050 mm 4,050 mm 6,050 mm 6,550 mm 6,550 mm 8,050 mm
Positioning accuracy ± 0.03 mm/m
Repeatability ± 0.02 mm/m
Rapid speed 100 - 120 m/min
Acceleration 1G
Shuttle table exchange time 10s 12s 15s 18s 20s 22s
Fury F5
Model Fury F5 3015 Fury F5 6015 Fury F5 6520
Working width 1,525 mm 1,525 mm 2,025 mm
Working length 3,050 mm 6,050 mm 6,550 mm
Positioning accuracy ± 0.03 mm/m
Repeatability ± 0.02 mm/m
Rapid speed 100 - 120 m/min
Acceleration 1G
Pipe Diameter ⌀ 20 - 160 mm ⌀ 20 - 160 mm ⌀ 20 - 220 mm
Shuttle table exchange time 10s 15s 18s
Fury F6
Model Fury F6 T3000 Fury F6 T6000 Fury F6 T9000 Fury F6 T12000
Pipe diameters ⌀ 20 - 160 mm
⌀ 20 - 220 mm
⌀ 25 - 280 mm
⌀ 25 - 320 mm
Laser power 1 - 6 KW
Positioning accuracy ± 0.03 mm/m
Repeatability ± 0.02 mm/m
Rapid speed 100 - 120 m/min
Acceleration 1G
* The specifications are subject to change on the basis of improvements made in our products.
Certain customizations are possible in the above machines.

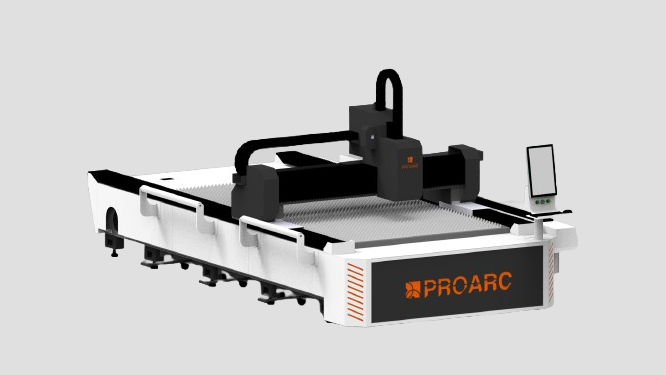

Lumos - Fiero

Compact machine for low power application

Processes
Plate Cutting
Marking

  • Compact design that reduces space requirement
  • User friendly graphical user interface
  • Drawing and nesting of shapes on the CNC controller itself
  • Inbuilt fume extraction system
  • Aerodynamic aluminium gantry for quick acceleration and deceleration
  • Auto sheet alignment

Model Fiero 3015 Fiero 4025
Working width 1,525 mm 2,025 mm
Working length 3,050 mm 4,050 mm
Maximum workpiece weight 900 kg 1,600 kg
Positioning accuracy ± 0.05 mm/m ± 0.05 mm/m
Repeatability ± 0.02 mm/m ± 0.02 mm/m
Rapid speed 80 -100 m/min 80 -100 m/min
Acceleration 0.8G 0.8G
Maximum laser capacity 3KW 3KW
* The specifications are subject to change on the basis of improvements made in our products.
Certain customizations are possible in the above machines.

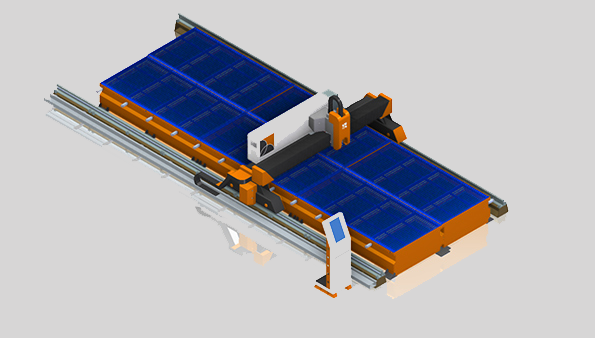

Lumos - Blaze

High-power large format laser cutting machine

Processes
Plate Cutting
Marking
Variants

Blaze L - Large format machine with long axis guiding motion by linear motion guides

Blaze R - Large format machine with long axis guiding motion by railway rail and cam follower arrangement

Model Blaze L Blaze R
Application Cutting of large plates and heavier thicknesses
Machine Structure Mild steel gantry motion guided over linear motion guides Mild steel gantry motion guided over railway rails
Working widths 3,200 mm 1,500 - 4,000 mm
Track length 7,000 / 14,000 mm Max. 26,000 mm
Positioning accuracy ± 0.1 mm/m ± 0.3 mm/m
Repeatability ± 0.05 mm/m ± 0.1 mm/m
Rapid speed 80 m/min 50 m/min
Fume extraction table Modular fume extraction table disjointed from main structure
* The specifications are subject to change on the basis of improvements made in our products.
Certain customizations are possible in the above machines.

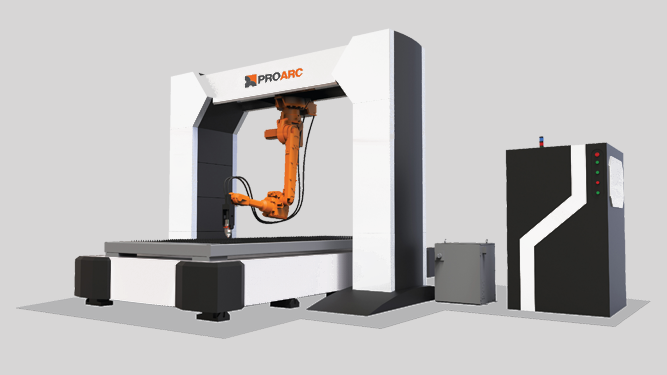

Lumos - Nova

Cutting-edge automation for complex tasks

Processes
3D Jobs

  • Custom-built automation solutions designed to meet manufacturing requirements
  • Rigid welded body with stress relieving & heat treatment for stability, precision & high speeds
  • Intelligent CNC operation with optimized parameters & simplified operation
  • Best-in-class laser source & auto-focusing head to reach critical points with high accuracy & flexibility
  • Robotic laser cutting solutions

Success Stories

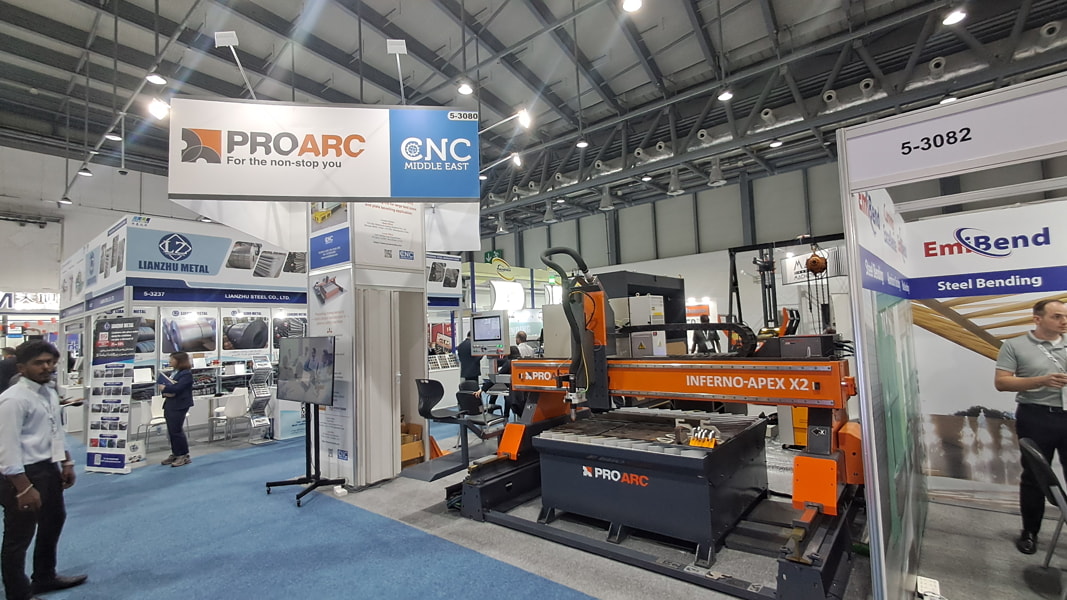

Witness Inferno Apex X2 in Action at First Steel Cut Ceremony at NMDC.
