INFERNO - APEX

High-precision engineering for ultimate performance.

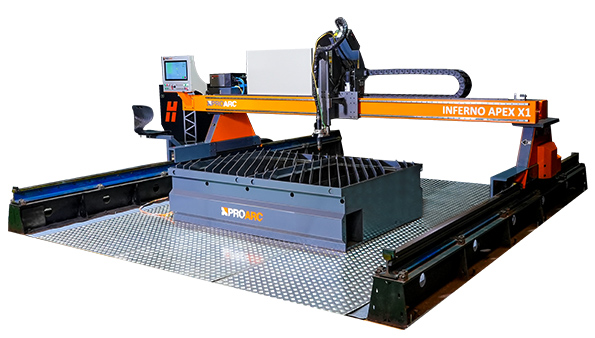

Inferno - Apex X1

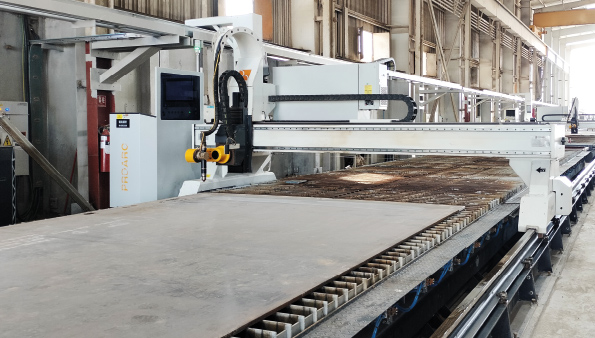

Inferno - Apex X2

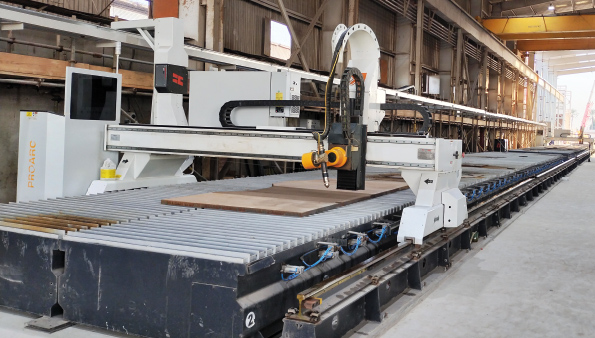

Inferno - Apex X2

High-precision engineering for ultimate performance.

The Apex product line combines strength and superior motion control to create an extremely high-performance plasma and/or oxyfuel cutting machine. This flagship series is designed for heavy-duty cutting, high precision and maximum productivity. Its high-quality components make it the most durable and robust CNC plasma machine series in its class.

Processes
Plate cutting
Edge Preparation
Marking

Inferno - Apex Series

Variants

Apex X1 - High-speed machine designed for high-definition plasma cutting

Apex X2 - Heavy-duty machine designed for large bed sizes and plate beveling applications

  • Large gantry design supported on heavy duty machined railway rails
  • Built with sturdy components to ensure high reliability
  • Dual linear motion guides mounted on the gantry for precise motion of torch stations
  • Helical racks and pinions ensure smoother operation, reduced shock loads, less noise and vibration
  • Power transmission along X & Y axes through digital AC servomotors and low backlash planetary gearboxes
  • Dual synchronized servo motors for gantry motion along longitudinal direction
  • Ball screw slides for precise vertical motion of torches
  • Touch screen based human machine interface (HMI)
  • Operator seat/ cabin that moves with the gantry in order to minimize operator fatigue
  • Remote fault diagnostics
  • Industry 4.0 compliant machine
  • Auto plate alignment for reduced setup time
  • Collision protection for plasma heads
  • Enhanced safety features
  • Air-conditioned control panel to protect the drives and other electronics from the harsh workshop conditions
  • Extended features include pipe/ tube cutting, marking, bevel heads for weld edge preparation, bolt hole cutting, automatic gas console, underwater cutting.

Model Apex X1 Apex X2
Processes Oxy-fuel and/or Plasma
Application Heavy-duty cutting application, high precision
Machine Structure Gantry simply supported at both ends by machined railway rails
Working Widths 1,500 mm - 5,000 mm 1,500 mm - 8,000 mm
Track Width 3,000 mm - 6,000 mm 3,000 mm - 9,000 mm
Maximum Working length 30,000 mm 40,000 mm
Lifter Stroke 200 mm / 300 mm
Cutting Capacity:
Oxy-fuel 6 mm - 100 mm / 200 mm (Higher cutting thicknesses on demand)
Plasma 0.5 mm – 150 mm MS
1 mm – 150 mm SS
1 mm – 150 mm Al
Cutting thickness depends on the plasma system offered
Maximum plasma torches 2 2
Maximum oxy-fuel torches 9 12
Maximum Position Speed 24,000 mm/min
X & Y axes motion Helical Rack and pinion
Z axis motion Ball screw
Guiding mechanism Dual linear motion guides on cross axis, cam follower arrangement for long axis with heavy duty railway rails
Cutting accuracy and dimensional tolerance ISO 9013 class 2
Operator HMI Touch screen based HMI, switches on operator panel
Operator Seat Yes
Add-on features Triple torch oxyfuel bevel, fume extraction table, underwater cutting table, bolt hole cutting, auto gas console, powder marking, inkjet marking, dot punch marking, spray ink marking. Plasma auto bevel, triple torch oxyfuel bevel, fume extraction table, underwater cutting table, bolt hole cutting, auto gas console, powder marking, inkjet marking, dot punch marking, spray ink marking.
* The specifications are subject to change on the basis of improvements made in our products.
Certain customizations are possible in the above machines.

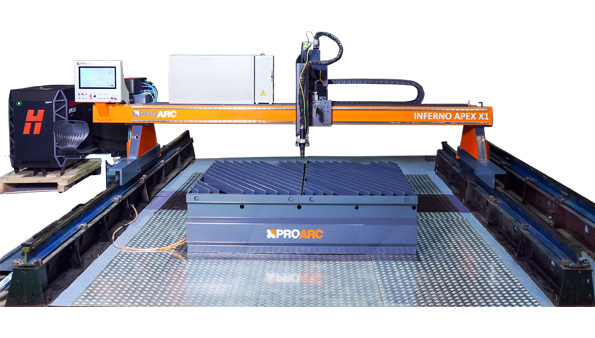

Inferno - Apex X1
