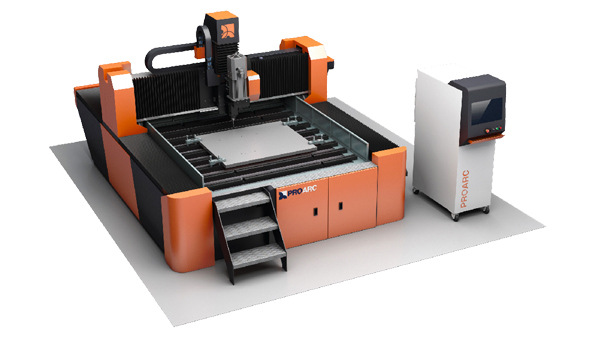

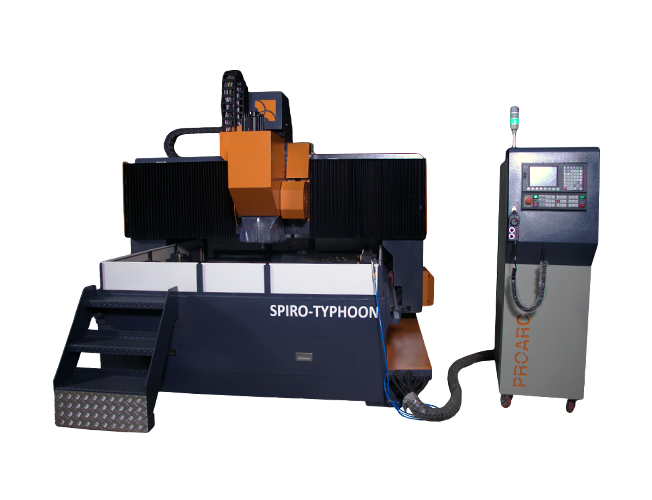

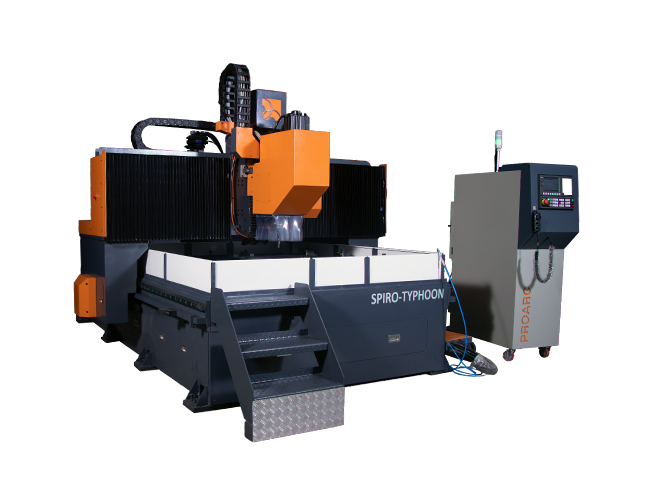

Spiro - Typhoon
Revolutionary drilling technology that offers flexibility
This tabletop machine is designed solely for high production drilling / milling operation
Processes
Drilling
Tapping
This tabletop machine is designed solely for high production drilling / milling operation
| Model | Typhoon | |
|---|---|---|
| Processes | Drilling / Tapping / Milling | |
| Application | Precise drilling applications with high accuracy requirements and high productivity requirements | |
| Machine Structure | Heavy-duty table top machine design with T-slot tables and gantry motion through linear motion guides | |
| Working widths | 1,500 mm / 2,000 mm / 2,500 mm / 3,000 mm | |
| Working lengths | 2,000 mm / 4,000 mm / 6,000 mm | |
| Spindle stroke | 200 mm / 250 mm / 300 mm | |
| Drilling maximum thickness | 100 mm (Depends on drilling tool and max. L/D permissible) | |
| Drilling hole diameters | Maximum ⌀ 30mm / ⌀ 40mm / ⌀ 50mm | |
| No. of spindles | 1-2 | |
| Spindle taper | ISO40 / ISO50 / HSK63 | |
| Cooling system | Mist cooling / flood cooling / through coolant | |
| Positioning accuracy | ± 0.05 mm/m | |
| Maximum Positioning Speed | 12,000 mm/min | |
| X & Y axes motion | Helical Rack and pinion / Ball screw | |
| Z axis motion | Ball screw | |
| Guiding mechanism | Linear motion guides on cross and long axes | |
| Add-On feature | Automatic tool changer, chip conveyor, coolant recirculation system, tapping, milling | |
