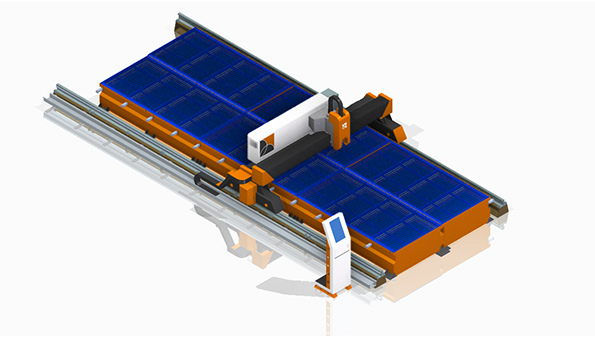

Blaze is a heavy duty, robust machine, designed for larger bed sizes. Its futuristic & innovative design allows utmost flexibility and extendibility of working area as per the user’s changing needs. The machine is equipped with cutting-edge hardware and software components to ensure swift and accurate movement of the laser head.
Blaze L - Large format machine with long axis guiding motion by linear motion guides
Blaze R - Large format machine with long axis guiding motion by railway rail and cam follower arrangement
| Model | Blaze L | Blaze R |
|---|---|---|
| Application | Cutting of large plates and heavier thicknesses | |
| Machine Structure | Mild steel gantry motion guided over linear motion guides | Mild steel gantry motion guided over railway rails |
| Working widths | 3,200 mm | 1,500 - 4,000 mm |
| Track length | 7,000 / 14,000 mm | Max. 26,000 mm |
| Positioning accuracy | ± 0.1 mm/m | ± 0.3 mm/m |
| Repeatability | ± 0.05 mm/m | ± 0.1 mm/m |
| Rapid speed | 80 m/min | 50 m/min |
| Fume extraction table | Modular fume extraction table disjointed from main structure | |
