Inferno - Sabre
High precision with rapid motion

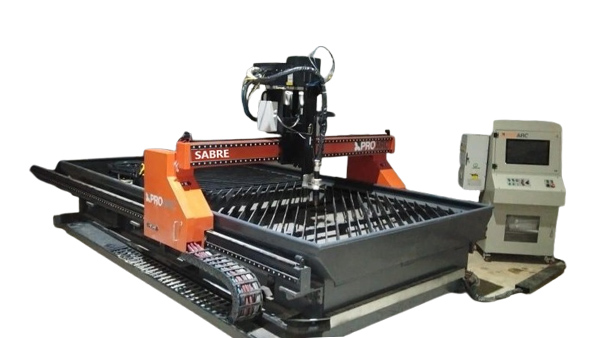

The Sabre plasma machine is a table-top machine with best-in-class table motions with high speeds and accelerations for cutting intricate jobs. This machine is easy to install and portable.
Processes
The Sabre plasma machine is a table-top machine with best-in-class table motions with high speeds and accelerations for cutting intricate jobs. This machine is easy to install and portable.
| Model | Sabre | |
|---|---|---|
| Processes | Oxy-fuel and/or Plasma | |
| Application | High speed and precision cutting | |
| Machine Structure | Table top machine with gantry motion on linear motion (LM) guides | |
| Working area | 1,500 mm x 3,000 mm 2,000 mm x 4,000 mm 2,000 mm x 6,000 mm | |
| Lifter Stroke | 100 mm | |
| Cutting Capacity: | ||
| Oxy-fuel | 6 mm - 60 mm | |
| Plasma | 0.5 mm – 50 mm MS 1 mm – 40 mm SS 1 mm – 40 mm Al Cutting thickness depends on the plasma system offered | |
| Maximum plasma torches | 1 | |
| Maximum oxy-fuel torches | 1 | |
| Maximum Positioning Speed | 24,000 mm/min | |
| X & Y axes motion | Spur/ helical Rack and pinion | |
| Z axis motion | Ball screw | |
| Guiding mechanism | Linear motion guides for long and cross axes motion | |
| Cutting accuracy and dimensional tolerance | ISO 9013 class 2 | |
| Operator HMI | Keypad based HMI / touch-screen based HMI | |
| CNC Controller | ARM-based controller / Windows based controller | |
| Table Type | Inbuilt fume extraction bed / In-built water bed | |
